Integrating with the Rediker student information system

Overview

This article contains guidance on setting up a SIS integration using Rediker.

OneRoster Exports in Rediker

NOTE: Only “Supervisor” users can access this feature. If you have a Rediker account, you can find the full SFTP export instructions at the following link: OneRoster Setup Instructions

• In AdminPlus, click Tools > OneRoster Export
  • There are 5 specification tabs. The General Specifications tab contains the necessary SFTP settings. The 4 other tabs are for mapping AdminPlus fields for export. Export can be initiated only after mapping all the mandatory fields.
• On the General Specifications tab, configure the following (see Image 1):

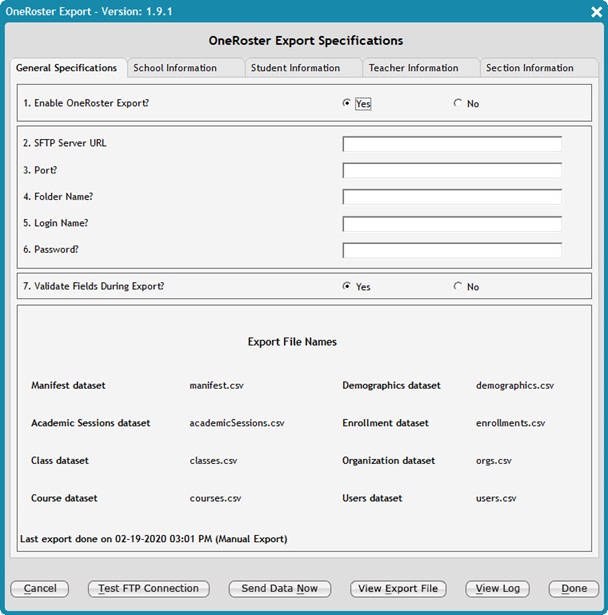

Image 1

• In fields 2-6, use the credentials provided by the Aperture Data Team.
• Once the SFTP settings are entered, click Test FTP Connection to test the export.
  • To export data manually, click Send Data Now.
  • To schedule the data export, set up a scheduled task to run RS4\PROGS\AP_OneRosterExport.exe.
  • The export files are created in RS4\OneRoster_Export\[School Name]. A copy of each file is saved with a date and time stamp. To access the export files, click View Export File.
• Select all fields you’d like to include in the export from the Student, Teacher, and Section Information tabs. Most of the needed information is included by default in the users.csv and demographics.csv files, but please make sure to specify the grade levels in Student Information and teacher email in the Teacher Information tab.
